Azure Information Protection Preview - First Look

Featured image

In June-2016, Microsoft announced the preview of Azure Information Protection (Azure IP) service. Azure IP provides security controls to protect the sensitive information even for those who share data to external network. Azure IP evolves after Microsoft acquired Secure Islands last year. Secure Islands earlier provided classification label services for the documents built on top of Microsoft RMS.

In this blog let’s explore what Azure IP offers.

What Azure IP does

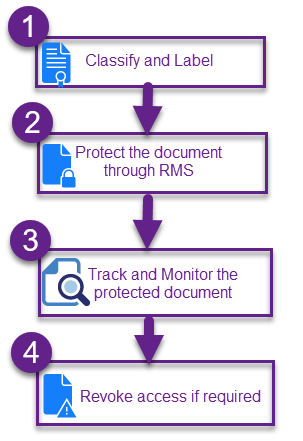

The core of Azure IP is its classification / label engine. And then it optionally protects the classified document by applying Azure RMS.

  1. Classify and label the documents at the time of creation
  2. Protect the document according to the document’s label through Azure RMS
  3. Track and monitor the protected document through Azure RMS portal
  4. Revoke the document sharing at any time by single click through Azure RMS portal

Azure IP is blend of classification service and Azure RMS. The classification and labeling service is offered through the technology acquired from Secure Islands. The rest of the process (protect, monitor and respond) is done through Azure RMS.

How Azure IP is better than the existing solutions?

The DLP policies work by creating the Transport Rules in Exchange Online and the information are checked only at the time of exit. In Azure IP, user needs to label the document at the time of creation and update. Once the label is selected, corresponding Azure RMS policy is applied and the document is protected. So there is no escape for the documents from protection.

Normally when the level of security increases, the convenience for the users will get decreased. But Azure IP strike the chord with perfect balance, where it just prompts the user to select the label and for automatic label application, it just shows the notification to the user. The ease-of-use with Azure IP is the main point of attraction.

Inside Azure IP Label

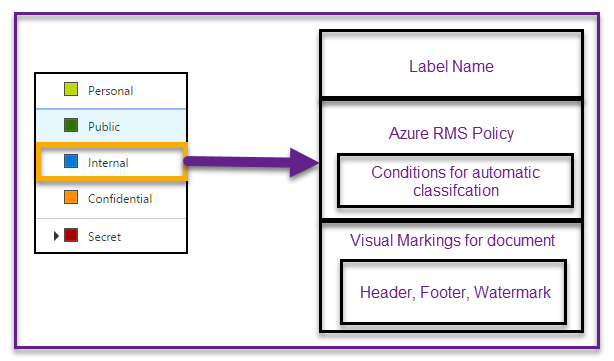

Azure IP provides set of default built-in labels and each label holds the below information.

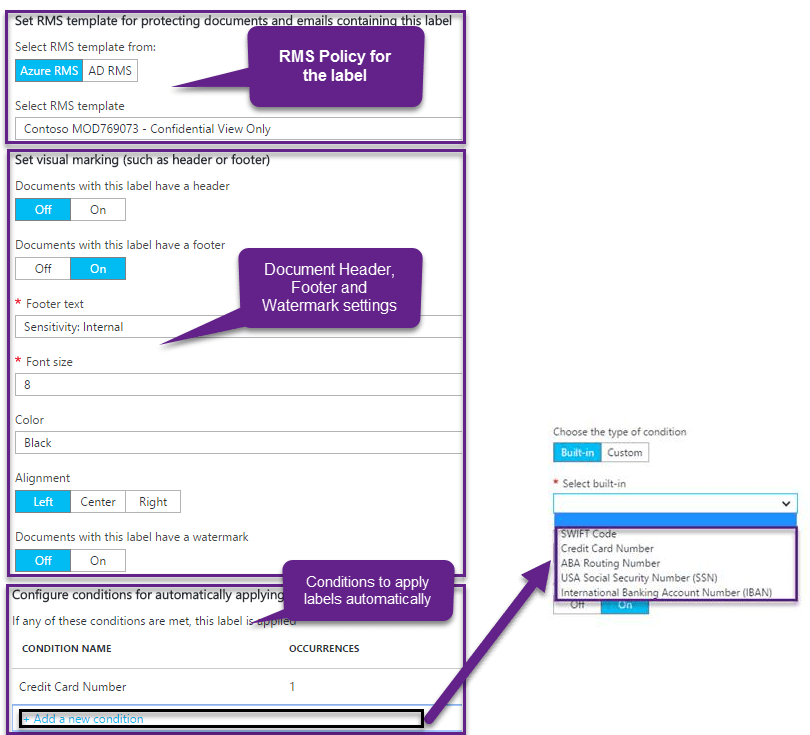

Below shown is the strip down screen-shot of “Internal” label in Azure IP portal.

Similar to DLP, Azure IP offers built-in conditions which can be used to automatically apply the label to the documents. Even we can create custom conditions using regular expressions also

How to get started with Azure IP

  1. Configure the Azure IP labels by logging into Azure Portal


  2. Download and install the Azure IP AddIn .

Azure IP Add-In currently supports: Word, Excel, PowerPoint, and Outlook (2010/13/16)

For detailed steps please check this blog.

How Azure IP Add-In interacts with documents

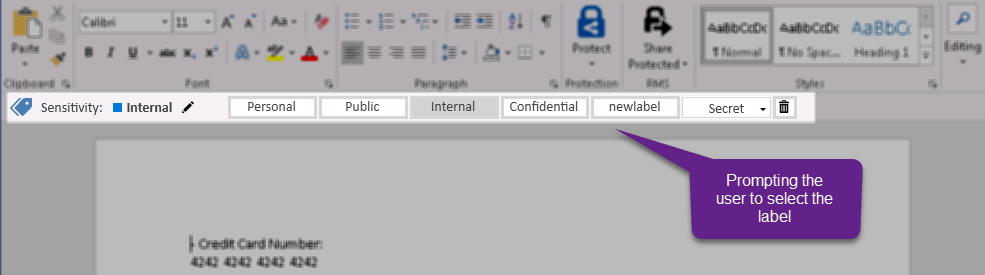

Once the labels are configured in Azure IP, below notification is shown to the user to classify the document.

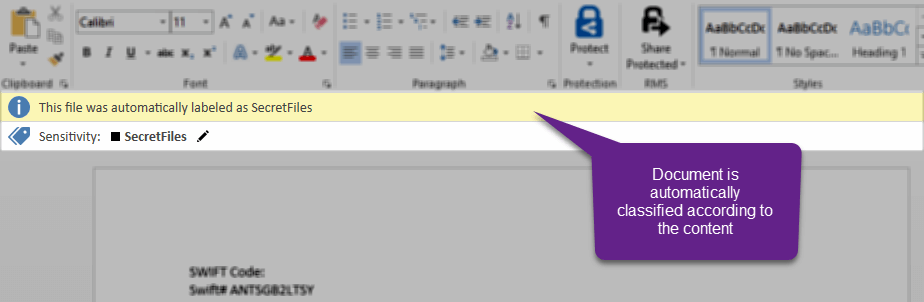

If you have configured conditions for automatic application of label, then the below notification is shown in which the label is applied automatically.

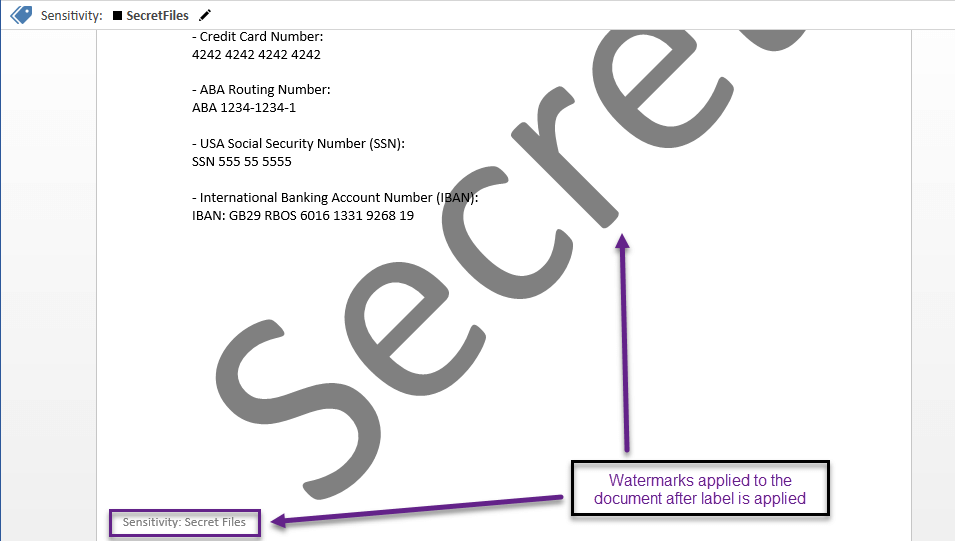

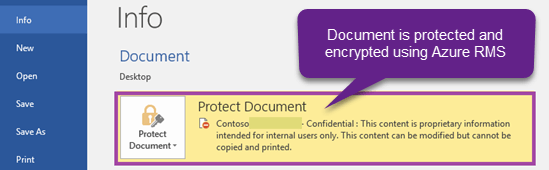

After the label is applied, the visual markings are applied to the document and the document is protected.

Track the document through Azure RMS Portal

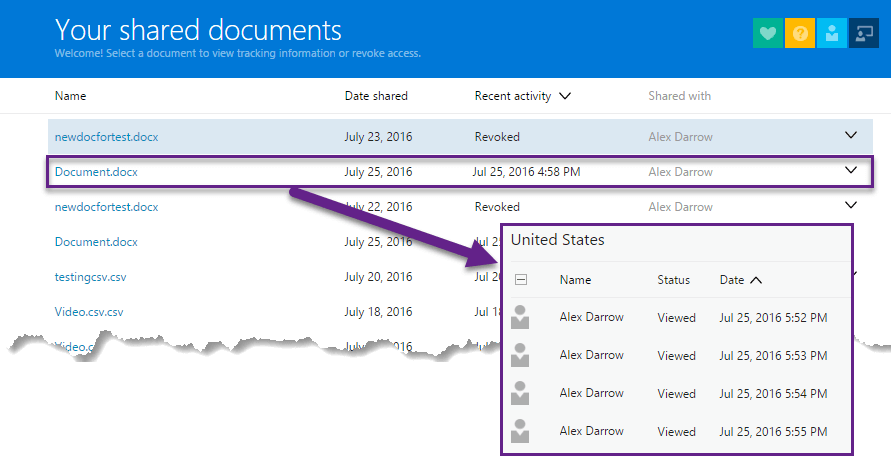

The protected document can be tracked for its usage through the Azure RMS portal (

Revoke the sharing of the document through Azure RMS Portal:

By single click in the portal, you can revoke the document.

Below error is shown after the access is revoked from the document.

How updates to the Azure IP labels are handled

Whenever a document is opened, the Azure IP Add-In automatically downloads the updated policy details and place it locally. So, even if you are not connected to internet, the Azure IP Add-In uses the locally saved policy details. Since the Azure IP label properties are not changed often, maintaining the details locally won’t harm in most of the cases.

Licensing details for Azure IP

Azure IP is bundled with EMS license suite. There are two variants

  1. Azure Information Protection Premium P1
  2. Azure Information Protection Premium P2

The existing Azure RMS premium becomes Azure Information Protection Premium P1 after GA. For more details, check this EMS license announcement blog

In Azure IP preview, all the features of Azure Information Protection Premium P2 is available
